礦山開采設備

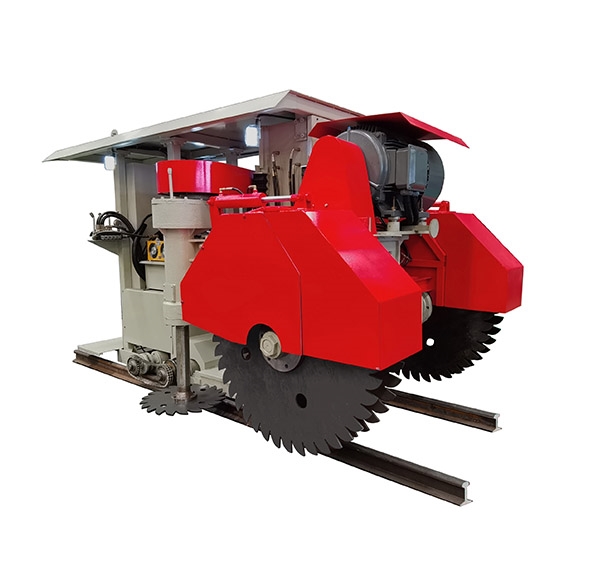

Sandstone Quarry Cutting MachineHKSS-1400砂巖采石場切割機

領跑智能制造新“石”代

Sandstone Quarry Cutting MachineHKSS-1400砂巖采石場切割機

所屬品牌:

所屬類別:礦山開采設備

想了解更多相關產品信息,請聯系我們!

0594-2197723
hualongmc@163.com
我要咨詢
  • 產品說明
  • 技術參數

砂巖采石場切割機
Sandstone Quarry Cutting Machine

HKSS-1400 適用于開采砂巖、石灰?guī)r和頁巖,將其切割成用于建筑的石塊。

HKSS-1400 is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.



Brick products quarried:開采的磚制品:


主要特點
1) 橫向切割依靠的是大型主柱的垂直導軌,其結構簡單且堅固,上下運行平穩。
2)界面簡潔,操作簡便。一名工人只需嘗試幾個小時就能熟練掌握其使用方法。
3)采用粗壯且較大的擺動臂結構進行交叉切割,切割過程穩定且快速。
4)具有 93% 效率的強勁電機,輸出功率高且能耗低。

Main Features


1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong, straight up and down runs stably.

2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.

3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.

4)Powerful motors with 93% efficiency, tall output and low consumption.




聯系我們,獲取完整方案!
Contact us to obtain the complete solution!



Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
華隆機械,數控五軸橋切機,四軸橋切機,4+1橋切,5+1橋切,三軸橋切機,紅外線橋切機,石材切機,石材加工廠設備,石材拋光機,石材拋光設備,石材加工中心,臺面加工中心,水刀,水刀切割機,礦山開采設備,礦山圓盤鋸,圓盤雙刀鋸,礦山機,礦山鋸。


參數 單位 HKSS-1400
縱向鋸片直徑 Diameter of the vertical mm 1330
橫向鋸片直徑 Diameter of the horizontal mm 600
鋸片厚度 Blade Thickness mm 12
最大切割深度 Max.cutting depth mm 500
切割寬度 cutting width mm 1350-1750
行進速度 velocity of approach m/min 10-45
升降油缸最大行程 Max.stroke of the lifting cylinder mm 700
縱向主電機功率 Vertical main motor power kw 75
橫向主電機功率 Horizontal main motor power kw 45
牽引電機功率 power of traction motor kw 5.5
液壓站電機功率 Hydraulic station motor power kw 5.5
總功率 gross power kw 133
整機重量 gross weight kg 6000
外形尺寸 Dimensions mm 4200×2060×2200

溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯系我們。
