雕刻設備

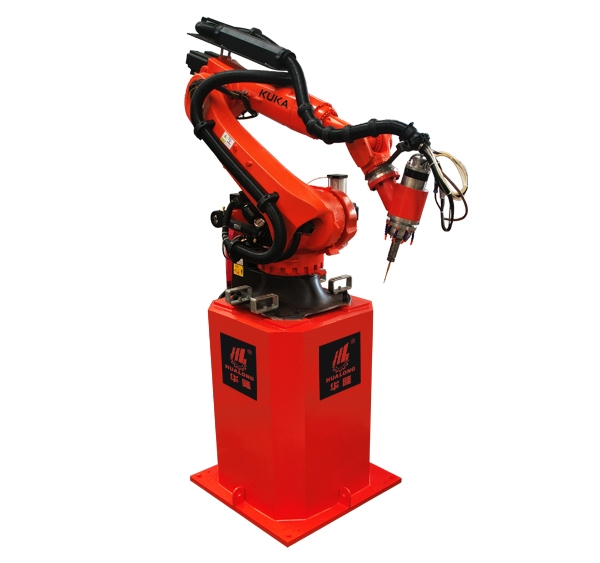

7 Axis Robot Arm CNC RouterHLRB-7A3D 7軸機器人

領跑智能制造新“石”代

7 Axis Robot Arm CNC RouterHLRB-7A3D 7軸機器人

所屬品牌:華隆

所屬類別:雕刻設備

想了解更多相關產品信息,請聯系我們!

0594-2197723
hualongmc@163.com
我要咨詢
  • 產品說明
  • 技術參數

采購可留言電話號碼,我們會與您聯系! 點擊進入1688查看更多產品

Purchase please leave a message phone and email, we will contact you!

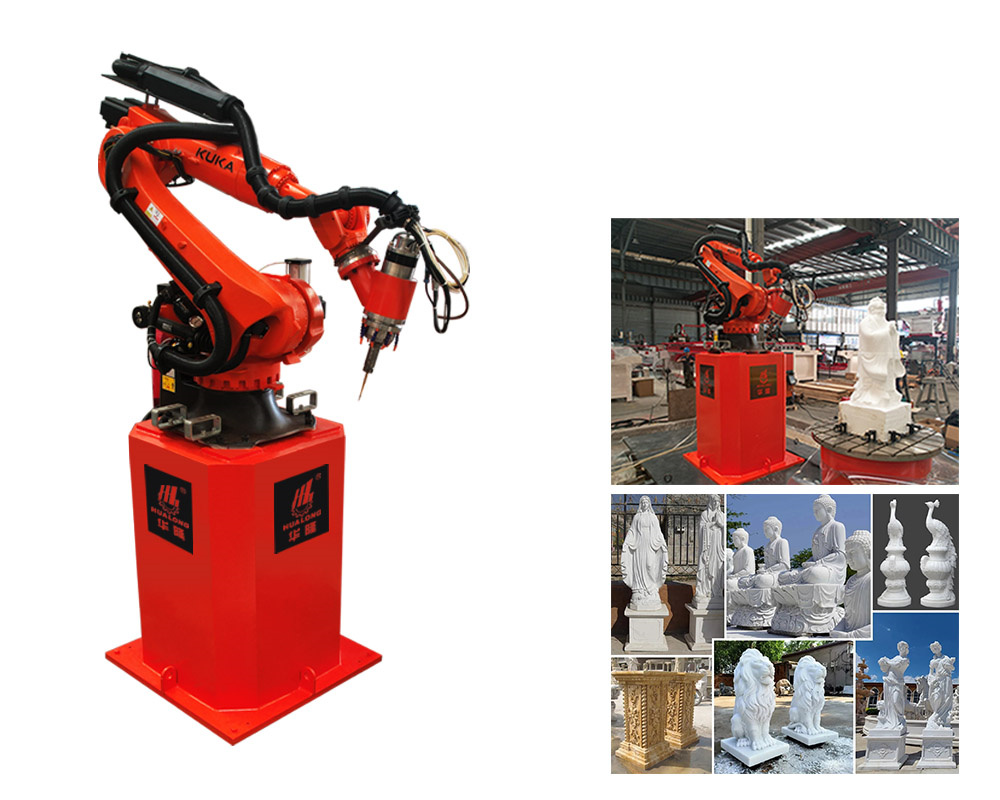

HLRB-7A3D七軸機器人是在庫卡機器人的基礎上,專為3D石雕工藝設計的自動化集成二次開發產品,采用離線編程系統Sprut CAM對復雜三維造型雕塑自動化加工,配置可以靈活變更,具有工作速度快、高精度(高速軸集成在手臂上)、多功能、自動化、操作方便等優點。目前在異型石材雕刻、石膏產品雕刻、泡沫產品雕刻、陶瓷模具、玻璃鋼制品等圓雕、浮雕領域都已形成了核心技術的積累。
HLRB-7A3D 7 Axis Robot is an automation integrated and secondary developedproduct on the base of KUKA robot, specially  designed for 3D stone carving process, very strong, high- precision (high-speed shaft integrated in the arm), verstile and easy to operate.It uses the offline programming system Sprut CAM to perform complex workpiece processing. The configuration can be changed at will. The robot can work normally even in harsh environments, with a service life of up to 15 years and an average time between accidents as long as 70,000 hours.


Features:
(1) Work quickly and efficiently with extremely high continuous track accuracy
(2) Working circumference of 3100 mm
(3) The software can realize the automation of complex 3D modelling sculpture processing
(4) Routing robots can produce more parts per hour than manual routing or CNC machine routing
(5) Robots increase productivity, repeatability, and quality while helping to simplify a tedious and complex application.


聯系我們,獲取完整方案!
Contact us to obtain the complete solution!




技術參數

TECHNICAL DATA

HLRB-7A3D 7 Axis Robot

實際負載

Actual Load

210 kg

最大臂展

Max. Armspread

2700 mm

最大加工尺寸

Max. Processable Size

1000x2500mm

回轉工作臺直徑

Diameter of Rotation Worktable

1000 mm

主軸功率

Spindle power

15 kw

最大主軸轉速

Max. Rotating Speed of Spindle

18500 rpm/min

重復定位精度

Repeat positioning accuracy

+/- 0.06 mm

支持的工具

Tools supported

粗加工鋸/銑刀/立銑刀/拋光輪

軟件

Offline Software

Sprut CAM

1 的運動范圍和速度

Motion range & Speed of Axis 1

+/-185° 86°/s

2 的運動范圍和速度

Motion range & Speed of Axis 2

0°/-146° 84°/s

3 的運動范圍和速度

Motion range & Speed of Axis 3

+155°/ -119° 84°/s

4 的運動范圍和速度

Motion range & Speed of Axis 4

+/-350° 100°/s

5 的運動范圍和速度

Motion range & Speed of Axis 5

+/-125° 110°/s

6 的運動范圍和速度

Motion range & Speed of Axis 6

+/-350° 184°/s

7 的運動范圍和速度

Motion range & Speed of Axis 7

無限旋轉 84°/s




溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯系我們。
